LAKASA Dental Plaster Trap
LAKASA stainless steel 316 Dental Plaster Trap, which designed for dental offices or similar establishments to separates plaster and other particles/ debris from the sink waste system, ensuring the waste pipes do not get blocked and are kept clean and clear.
Sizing criteria :
- Under sink installation : 12 GPM model (single bowl)
- Centralised Installation : 12 GPM x No of Fixtures X Diversity Factor

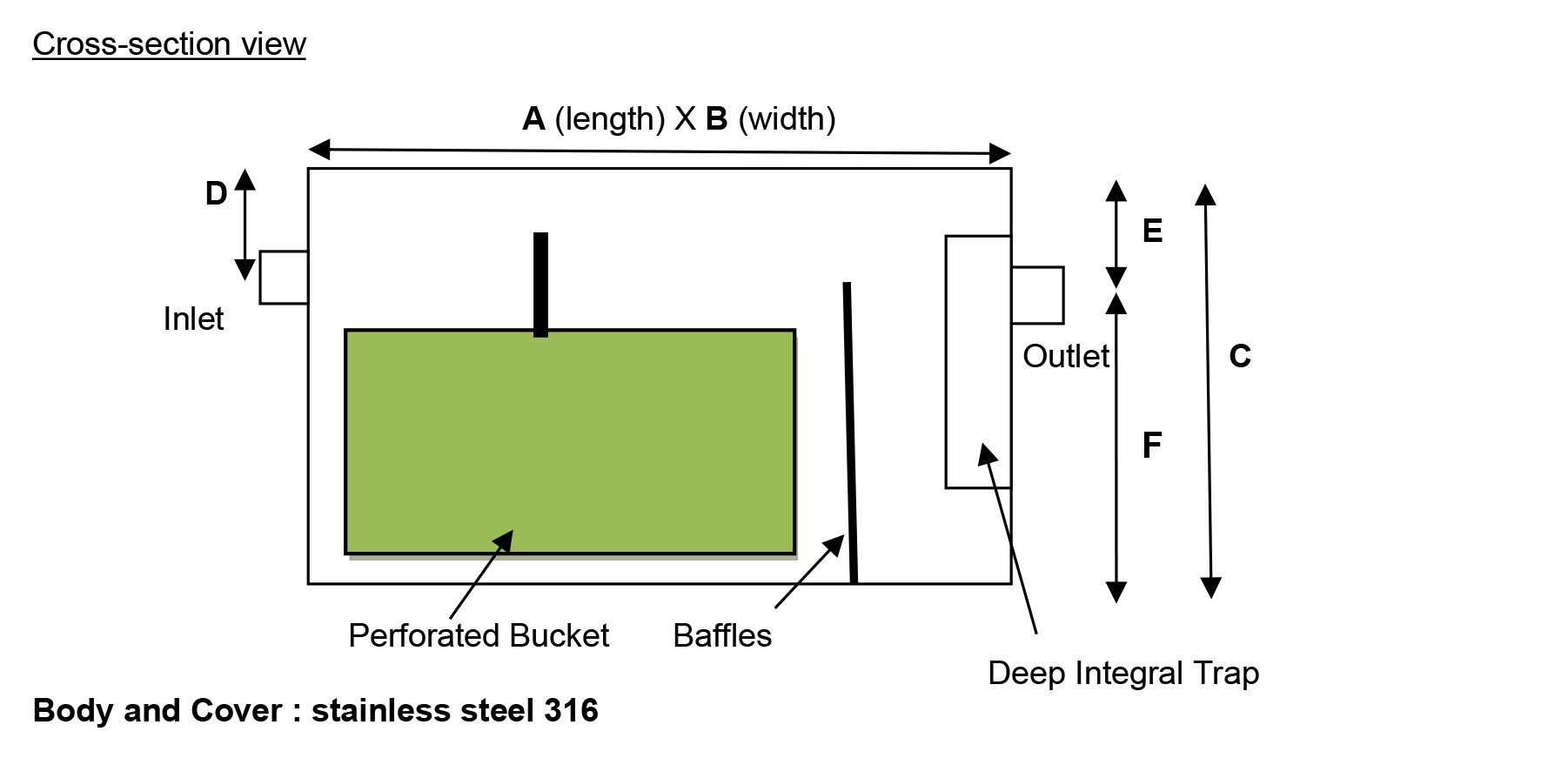

Dimensional Data (All dimension in mm)
| Model | Flowrate (GPM) | Inlet & Outlet | A (length) | B (width) | C (height) | D | E | F |
| LP012 | 12 | 50 | 600 | 340 | 320 | 80 | 85 | 235 |
| LP024 | 24 | 50 | 720 | 380 | 420 | 90 | 100 | 320 |
| LP036 | 36 | 75 | 820 | 420 | 460 | 95 | 110 | 350 |
| LP050 | 50 | 75 | 920 | 480 | 520 | 110 | 120 | 400 |
| LP075 | 75 | 100 | 1220 | 550 | 560 | 110 | 130 | 430 |
| LP100 | 100 | 100 | 1220 | 720 | 740 | 130 | 150 | 590 |
Installation method statement
- Inspect unit for defects / damages and make sure it meets specified requirements (eg : model and size).
- DO NOT INSTALL INTERCEPTOR BACKWARDS. Install interceptor as close as possible to the source to minimizes unprotected pipe.
- Install interceptor sitting on floor, partially recessed or flush-to-floor, making sure there is enough room to allow for easy maintenance of the unit. (Room for cover to be removed and sediment bucket to be taken out for cleaning).
- INTERCEPTOR MUST BE PLACED ON A FLAT, SOLID SURFACE TO SUPPORT THE BOTTOM! When suspending interceptor from floor above, all units must be fully supported on bottom with a flat surface strong enough to support the weight of the unit when full of water/sediment waste. All units must be independently supported to avoid stress on fittings.
- INTERCEPTOR filled with clean water until static water level and is ready for operation.
